Gel-Clear Dairy Cabinet Condensate Pump Kit (UCP700) is a complete, low-profile solution designed for efficient condensate management in supermarket refrigeration cabinets. With a compact height of just 76mm, this system fits neatly into restricted spaces while delivering powerful and reliable performance.
Constructed from durable stainless steel, the pump kit is built to withstand demanding commercial environments. It is engineered to meet BS EN12056 standards, helping ensure compliant and dependable installations.

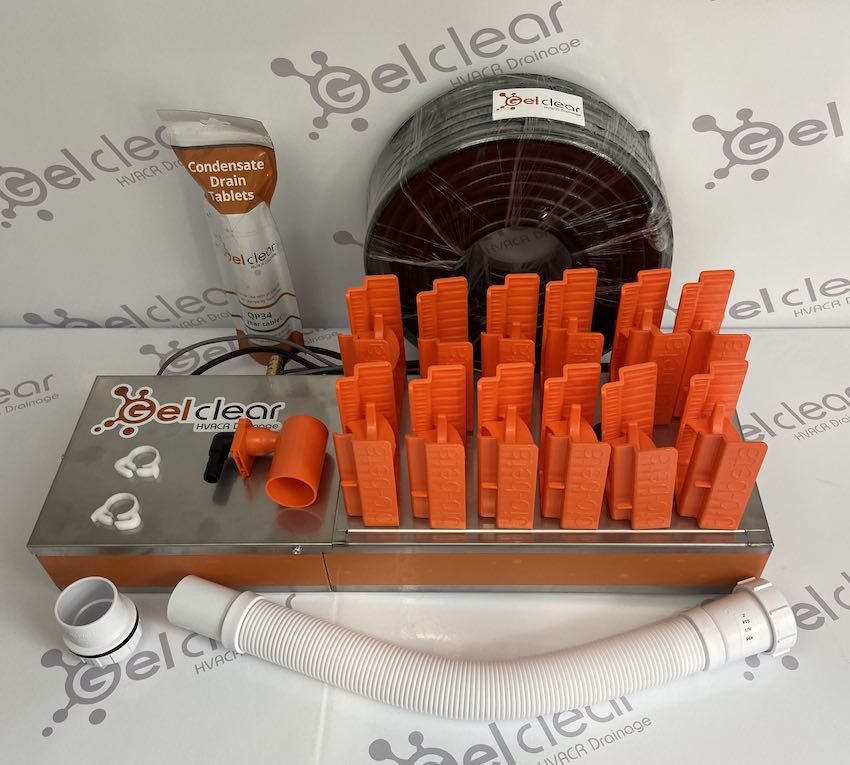

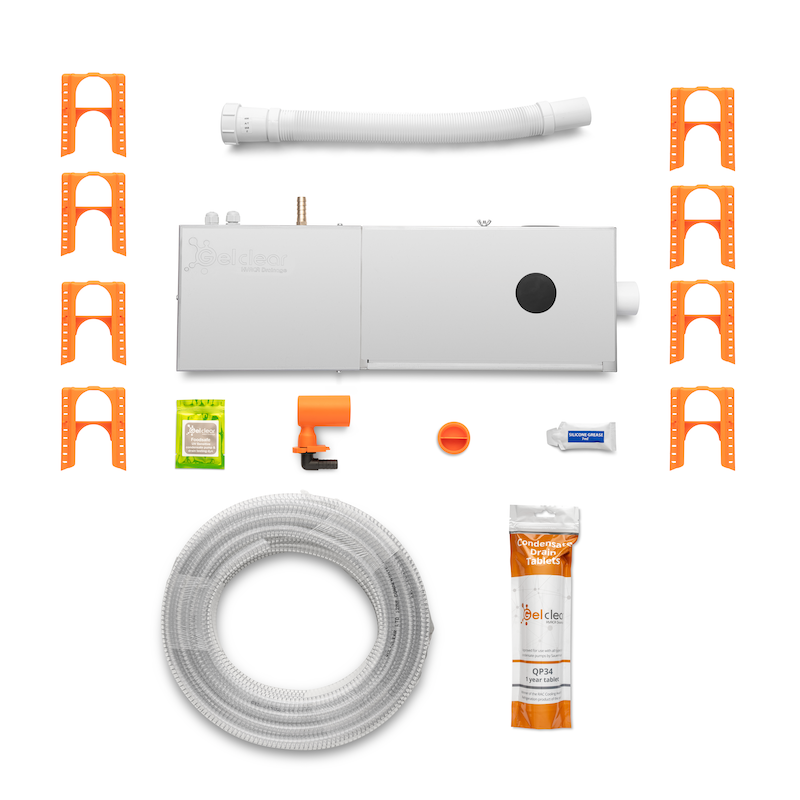

What’s Included

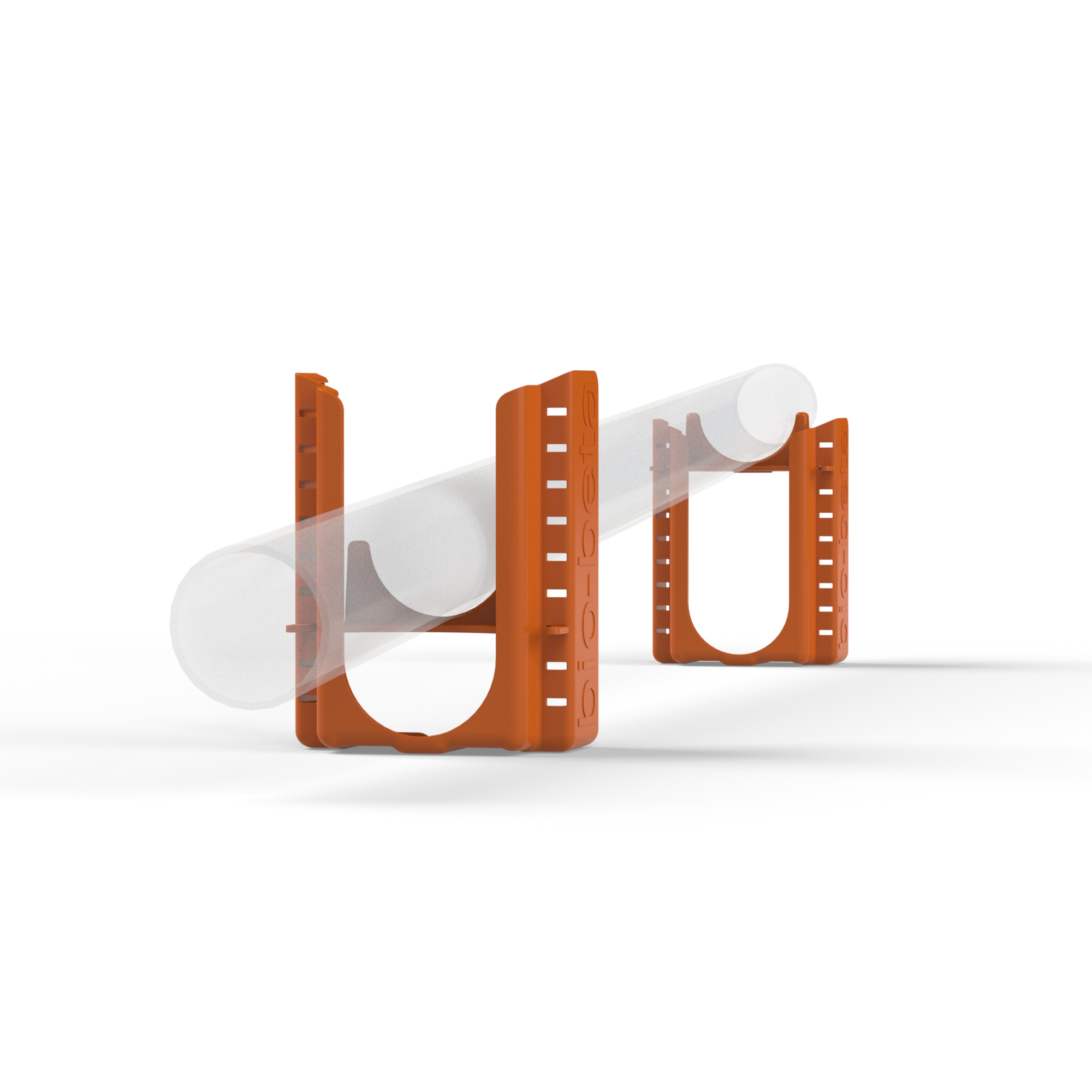

- 12 x Condensate Drain Supports (APC19)

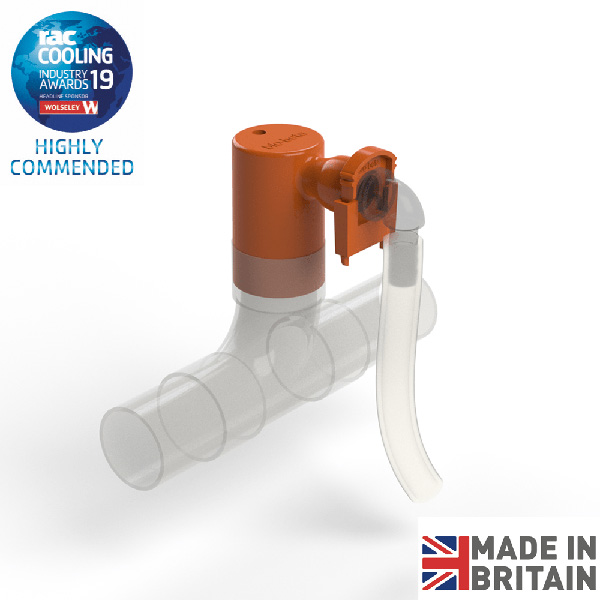

- 1 x Header Drain Connector (CPH17)
- 6 x One-Year Condensate Drain Tablets (QP34)
- 2 x Pipe Clamps

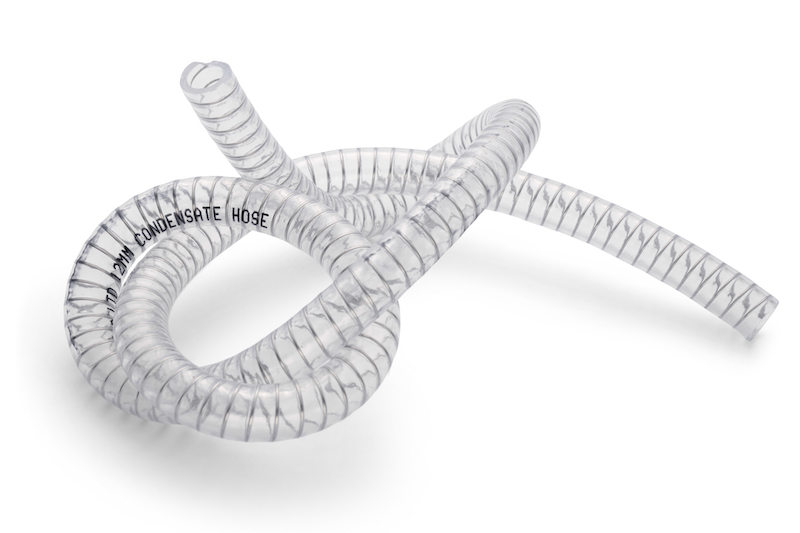

- 1 x 15m Discharge Hose (CDH15)
- 1 x 500mm Flexible Connector
- 1 x Spigot Outlet
Key Features & Benefits
- Complete Installation Kit – Supplied with all essential components for a compliant setup.
- Low Profile Design – Only 76mm high, ideal for tight cabinet spaces.
- High Performance Pump – Capable of 700 litres per hour with a lift of up to 23 metres.
- Flexible Installation – Multiple inlet options including top, side, and end entry points.
- Pre-Wired Connections – Supplied with power and alarm cables for faster installation.
- Anti-Kink Drain System – Helps prevent blockages, backflow, and discharge issues.
Why Choose This Pump Kit?
This system has been developed to address common causes of condensate pump failure, including biofilm build-up, restricted pipework, and excessive cycling. By improving flow and reducing strain on the pump, it can significantly extend operational lifespan and reduce maintenance requirements.
- Reduces pump failure rates
- Improves long-term reliability
- Lowers maintenance and replacement costs
Specifications
- Maximum Flow Rate: 700 LPH
- Maximum Lift: 23 metres
- Maximum Cabinets: Suitable for up to 6 units
- Height: 76mm
- IP Rating: IP44
- Material: Stainless steel
- Certification: CE marked
- Manufactured: UK
Warranty: Includes a 3-year warranty when installed as part of the complete system in line with EN12056 standards.
Designed for performance, durability, and compliance, the Gel-Clear UCP700 pump kit is a dependable choice for supermarket refrigeration environments.
