Compact and Reliable 1 Litre Condensate Pump for HVAC Systems

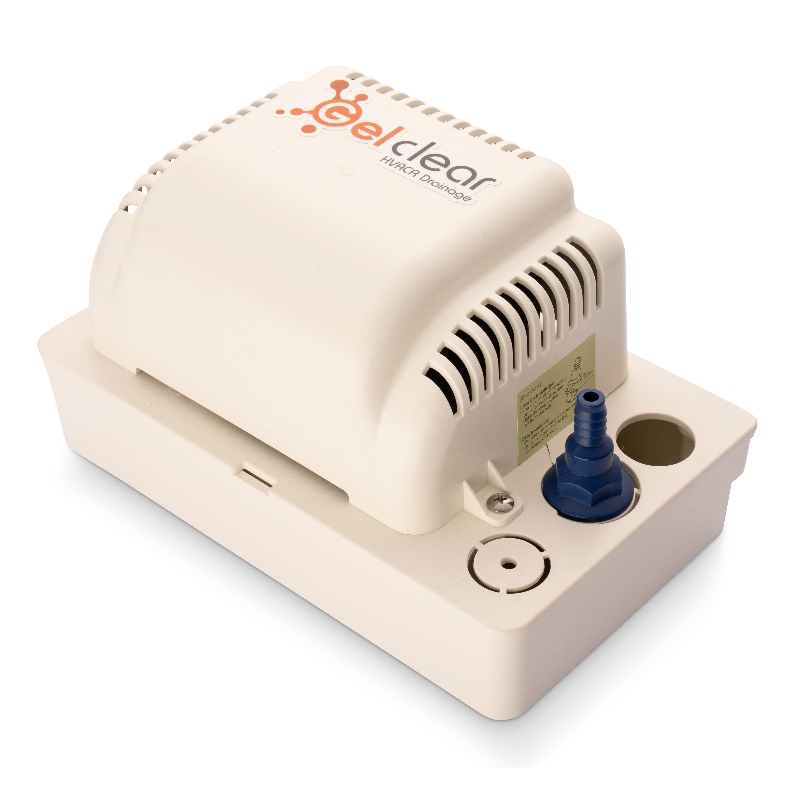

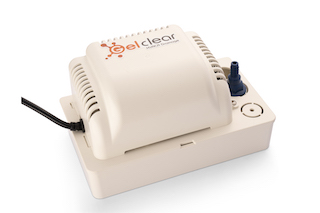

The TP-1L condensate tank pump is designed to provide efficient and dependable removal of condensate water from air conditioning units, refrigeration systems, and heating equipment. Its compact size makes it ideal for installations where space is limited.
Built with durability and performance in mind, this pump features a robust ABS body and a low-noise motor, ensuring long-lasting operation in both residential and commercial environments.
Efficient and Automatic Operation
The pump operates automatically, activating when condensate reaches a set level and stopping once the tank is emptied. This helps maintain consistent system performance while reducing the need for manual intervention.
Compact Design for Flexible Installation
Its small footprint allows for easy installation in tight spaces such as cassette air conditioning units and refrigeration cabinets. The pump can be installed with the inlet positioned below the drain level for optimal performance.
Key Features
- Maximum discharge head of 6 metres
- Maximum flow rate up to 270 litres per hour
- Approx. 1 litre tank capacity
- Low noise operation (approx. 43 dB)
- Durable ABS construction for corrosion resistance
- Integrated check valve to prevent backflow
- Automatic start and stop functionality
- Optional overflow safety alarm (TP-1La model)
- Supplied with compatible discharge fittings
Technical Specifications
- Tank Capacity: 0.8–1 litre
- Max Flow Rate: 270 L/h
- Max Head: 6 metres
- Power: 75W
- Current: 0.64A
- Noise Level: 43 dB(A)
- Pressure: 9.8 PSI
Applications

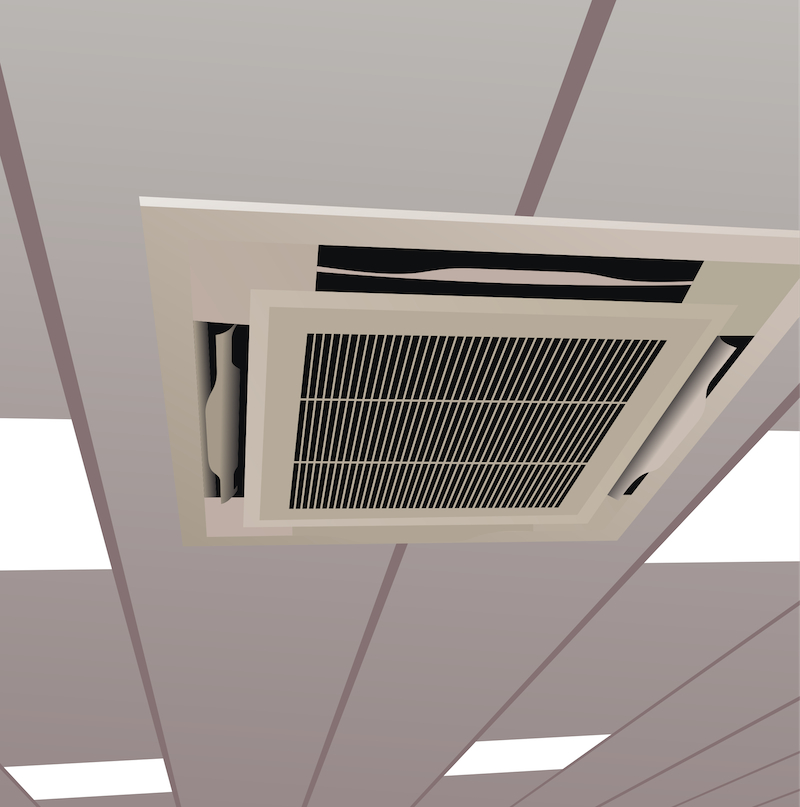

- Cassette air conditioning systems
- Refrigeration units
- Condensing boilers
- Evaporator coils
Key Benefits
- Compact size for restricted spaces
- Quiet and efficient operation
- Helps prevent water overflow and damage
- Easy to install and maintain
- Reliable long-term performance
