High-Capacity Vertical Condensate Pump for Cold Room Applications

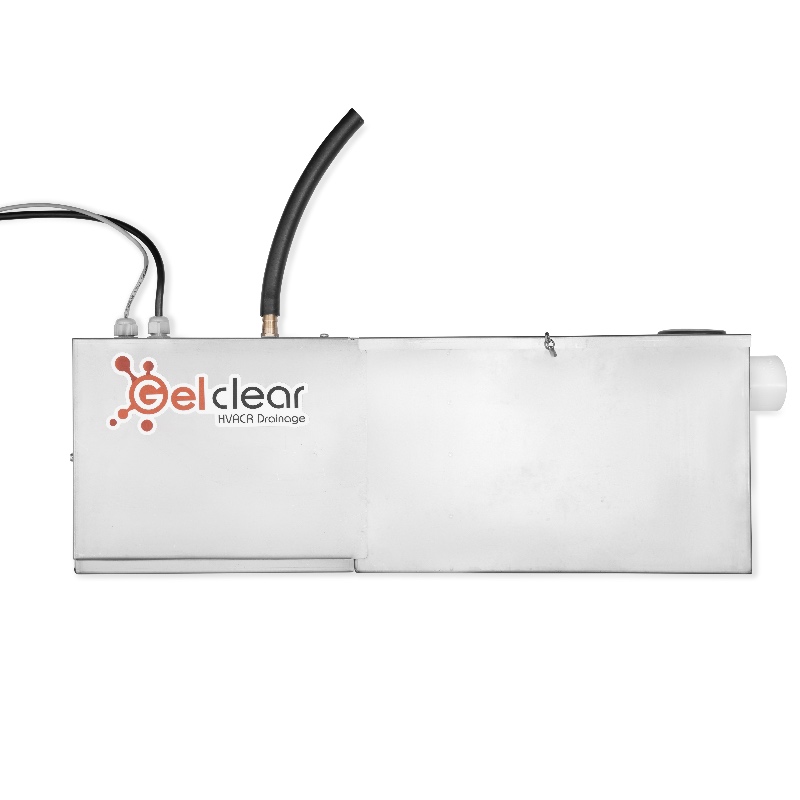

The CSP700 vertical condensate pump is designed for reliable performance in cold rooms, supermarkets, and commercial refrigeration environments. Built with durability in mind, it provides efficient condensate removal in demanding conditions where consistent operation is essential.
Its compact, wall-mountable design allows for easy installation while ensuring convenient access for servicing and maintenance.
Durable Construction
Manufactured with a robust stainless steel body, the CSP700 is built to withstand impact and wear in busy stock areas and service zones, ensuring long-term reliability.
High Performance Pumping
With a discharge capacity of up to 700 litres per hour and a maximum lift of 23 metres, the pump is suitable for multiple evaporator units and high-demand installations.
Flexible Installation Options

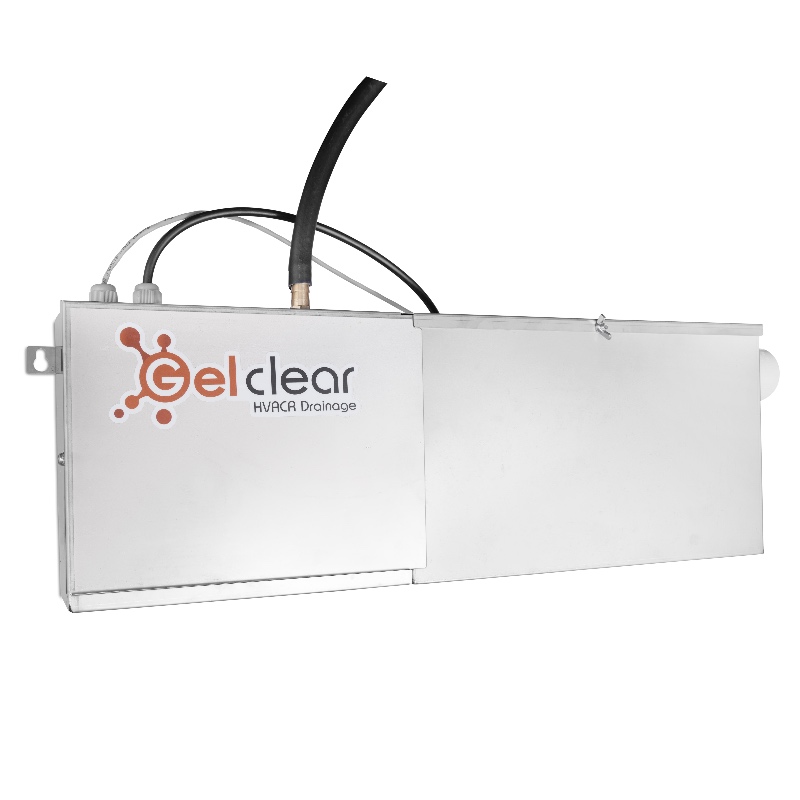

The unit can be securely mounted using side fixing points and offers multiple inlet configurations, allowing installers to adapt it to different system layouts.
Key Features
- Stainless steel construction for durability and corrosion resistance
- Discharge capacity up to 700 litres per hour
- Maximum lift height of 23 metres
- Wall-mountable vertical design

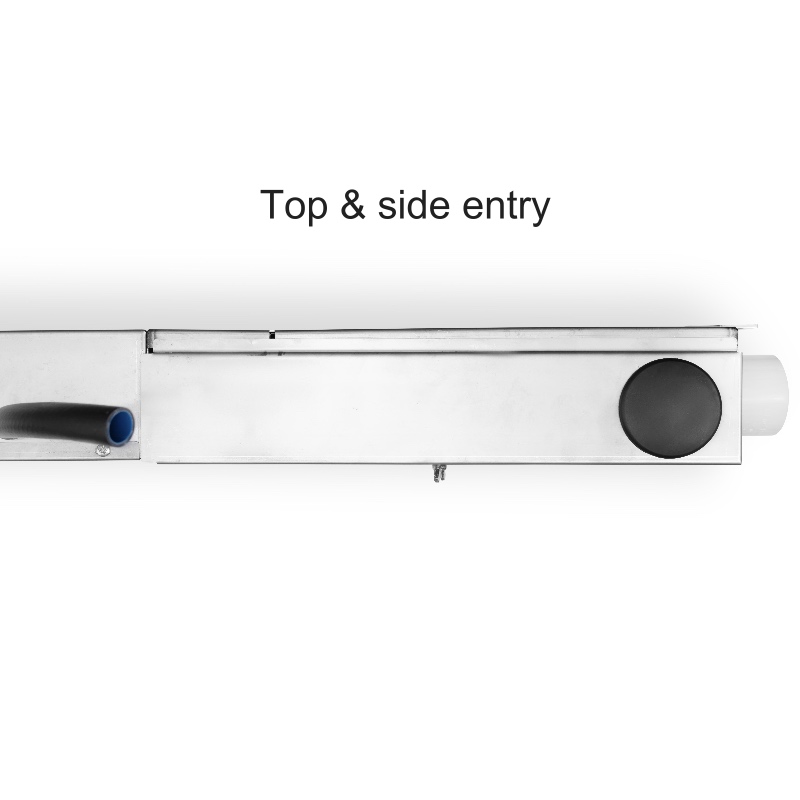

- Multiple inlet connection options (top and side)
- IP44-rated sealed electrical enclosure
- Suitable for multiple evaporator connections
- Designed for easy servicing and maintenance
Installation and Maintenance Benefits
- Supplied with components to support straightforward installation
- Designed for easy access during servicing
- Supports efficient system setup and ongoing maintenance

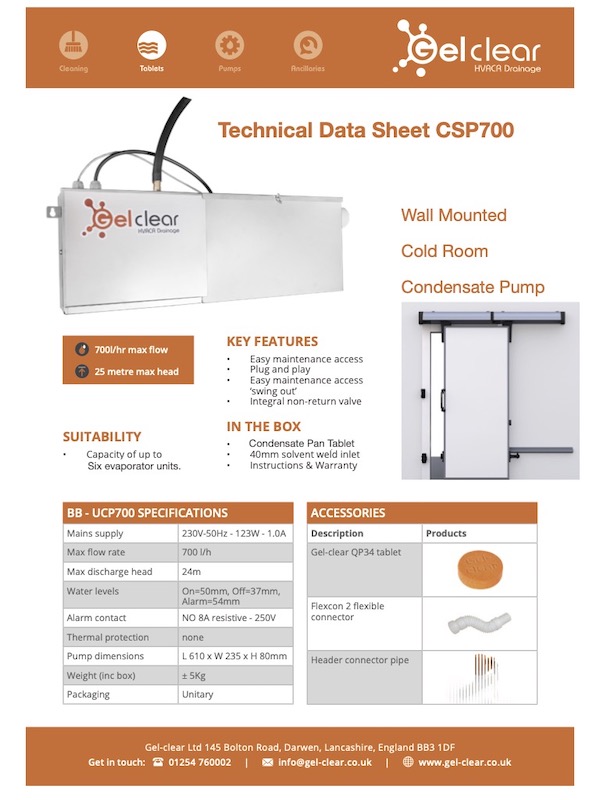

Technical Specifications
- Discharge Rate: 700 litres per hour
- Maximum Lift: 23 metres
- Connection: 1/2″ barbed hose tail
- Capacity: Supports up to 6 evaporator units
- Protection Rating: IP44
- Warranty: 2 years
Optional Configuration
An optional overflow reservoir can be added to provide temporary water storage in the event of pump failure, helping to reduce the risk of water leakage.
Applications
- Cold rooms and walk-in refrigeration units
- Supermarket and retail refrigeration systems
- Commercial cooling environments
Key Benefits
- High-capacity performance for demanding applications
- Durable design for long-term use
- Flexible installation options
- Easy to maintain and service
- Suitable for multi-unit refrigeration systems
