Complete Condensate Pump Kit for Retail Refrigeration Installations
The BB-UCP110 condensate pump kit is designed to provide a complete solution for managing condensate in convenience retail refrigeration systems. Combining a compact, low-profile pump with a full range of installation components, this kit supports reliable performance and efficient drainage.

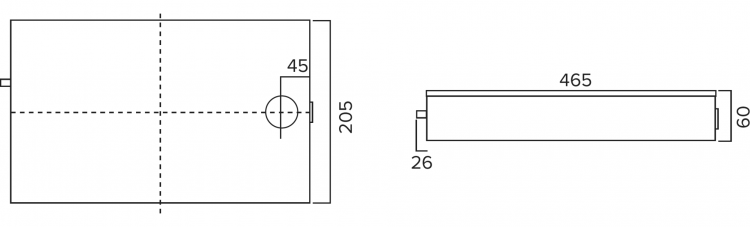

With a height of just 60mm, the pump is ideal for use in low-clearance display cabinets while delivering consistent and energy-efficient operation.

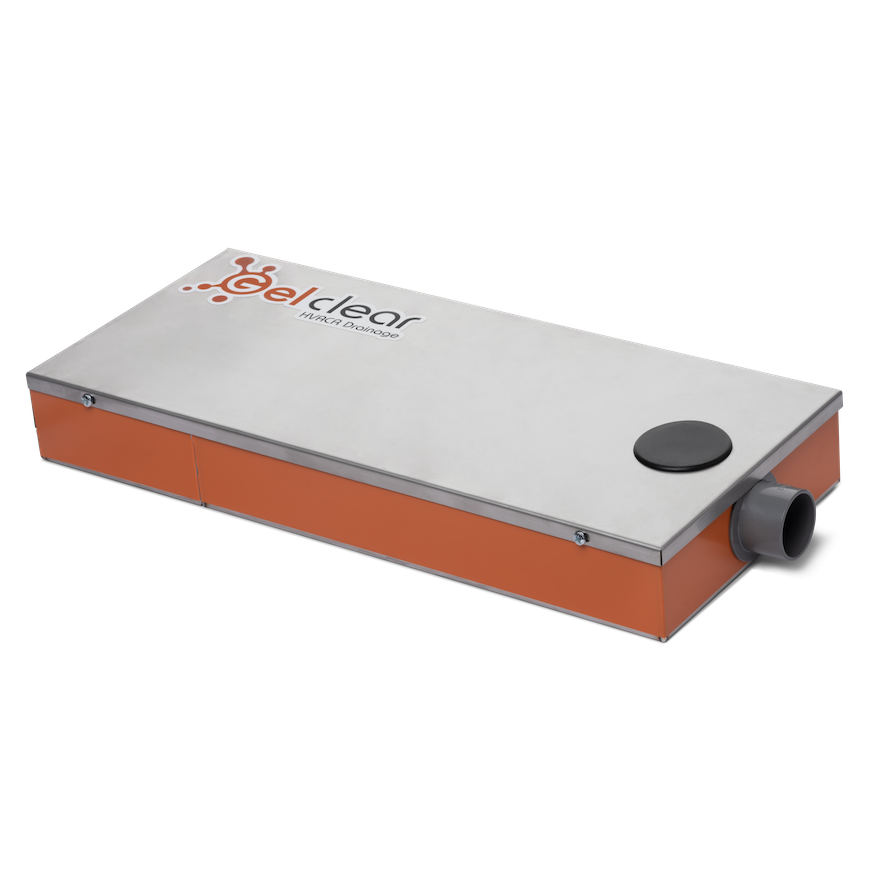

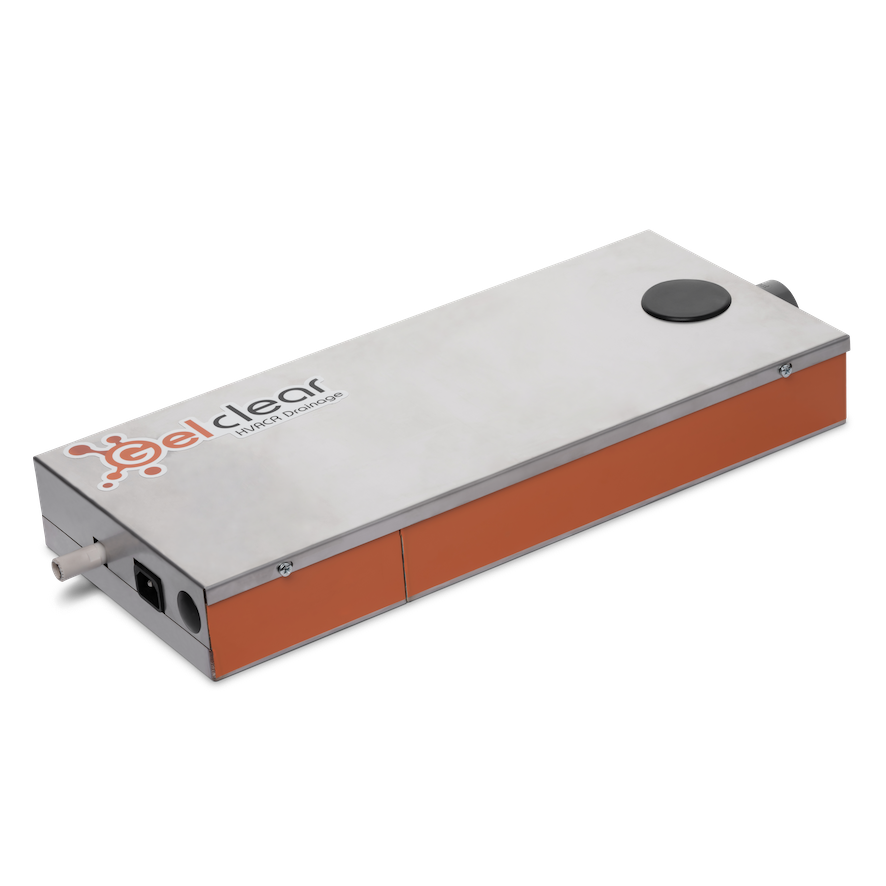

Low-Profile, High Efficiency Pump
The included condensate pump features a stainless steel construction and operates with low power consumption, making it suitable for continuous use in commercial refrigeration environments.
Designed to Improve System Reliability
This kit is developed to address common causes of condensate pump failure, such as blocked drains, hose kinks, and poor drainage layout. By supporting correct installation practices, it helps extend pump lifespan and reduce maintenance issues.

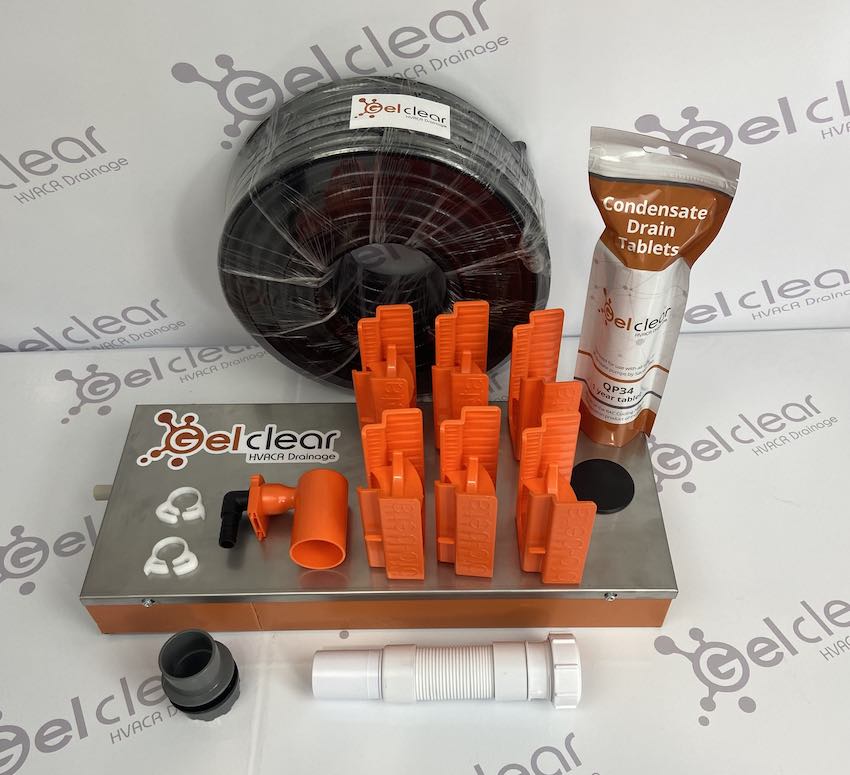

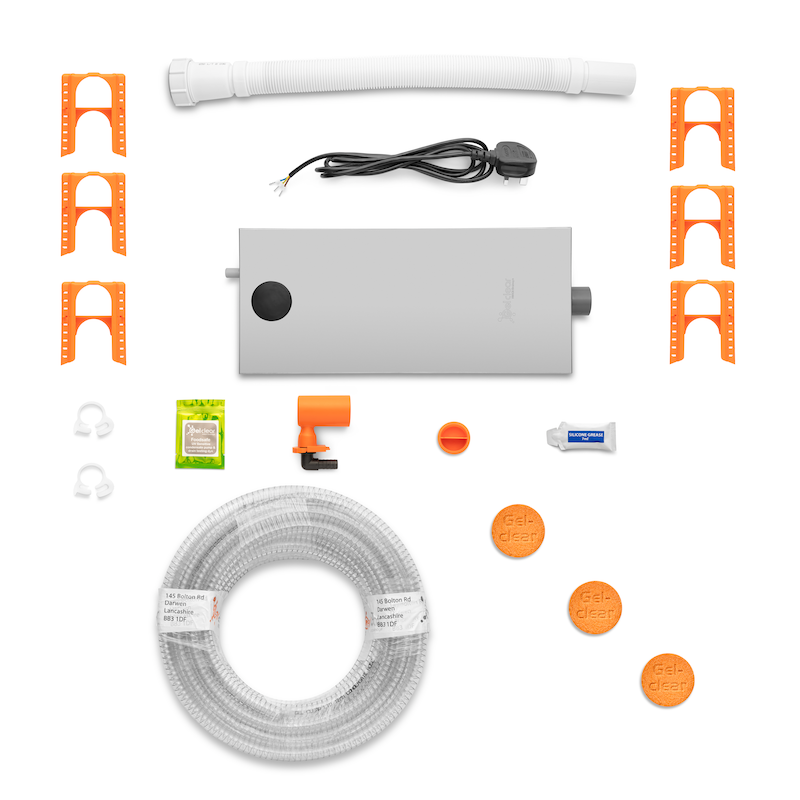

Complete Installation Kit
Supplied with all essential components, the kit allows for a streamlined installation process:
- 6 × condensate drain supports
- Header drain connector with air intake valve
- 3 × condensate drain treatment tablets
- Pipe clamps
- Discharge hose line
- 300mm flexible connector
- Spigot outlet
Key Features
- Low-profile pump design (60mm height)
- Stainless steel construction for durability
- Low power consumption (approx. 37W)
- Maximum pumping head of 30 metres
- Pump rate up to 110 litres per hour
- Multiple inlet options for flexible installation
- Integrated non-return valve
- Pre-fitted power cable for quick installation
- 3-year warranty
Compliance and Installation Benefits
- Supports drainage system compliance with EN12056 standards
- Helps prevent pipe kinks and backflow issues
- Encourages correct drainage slope for efficient flow
- Reduces risk of pump failure caused by installation issues
Applications
- Convenience retail refrigeration cabinets
- Dairy and display cooling units
- Commercial refrigeration systems
Key Benefits
- Complete solution for condensate management
- Improves system reliability and lifespan
- Easy to install with included components
- Energy-efficient and compact design
- Suitable for tight installation spaces
